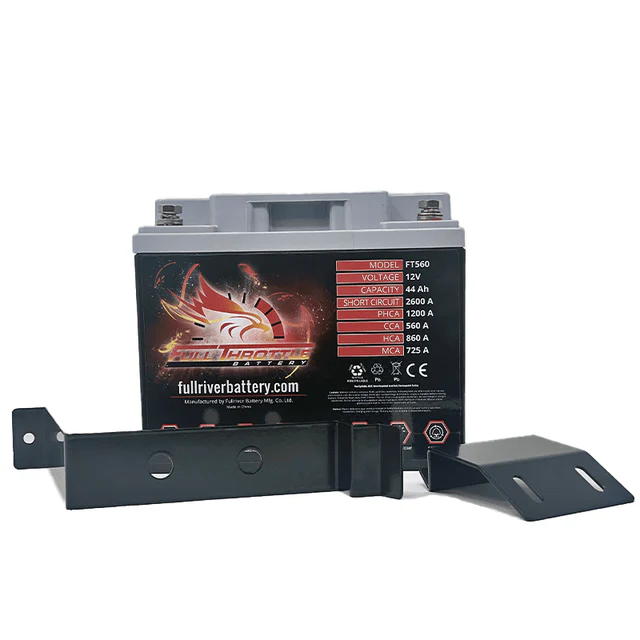

Full Throttle (Fullriver) FT560 High Capacity Dual Purpose AGM Battery (Right Positive)
| Cycling Capacity | |
|---|---|
| 20 hour rate | 44 Amp Hours |
| Reserve Capacity | |||
|---|---|---|---|
| @ 25 Amps | 80 minutes | @ 75 Amps | 14 minutes |
| Mechanical Specifications | |
|---|---|
| Group Size | |
| Terminal Type | M8 |
| Total Height | 6.69″ (170 mm) |
| Height | 6.69″ (170 mm) |
| Width | 6.54″ (166 mm) |
| Length | 7.80″ (198 mm) |
| Weight | 33.3 lbs (15.1 kg) |
| Case Type | ABS Plastic – Flame Res Rating UL94-HB |
| Discharge Table (Constant Current) | ||
|---|---|---|
| Time | Amps | Rate |
| 20 hr | 2.2 | 0.05 CA |
| 10 hr | 4 | 0.1 CA |
| 8 hr | 4.8 | 0.13 CA |
| 5 hr | 7 | 0.25 CA |
| 3 hr | 11.3 | 0.33 CA |
| 2 hr | 14.7 | 0.5 CA |
| 1 hr | 27.2 | 1 CA |
| Electrical Specifications | |
|---|---|
| Nominal Voltage | 12 Volt |
| Capacity @ 100 hour rate | 48 AH |
| Capacity @ 20 hour rate | 44 AH |
| Capacity @ 10 hour rate | 40 AH |
| Capacity @ 5 hour rate | 35 AH |
| CCA | 560 |
| CA or MCA | 725 |
| Short Circuit Current | 2600 Amps |
| Internal Resistance | 2.7m Ω |
| Charge Voltages | ||||
|---|---|---|---|---|
| Battery Voltages | ||||
| Charge Stage | 12V | 24V | 36V | 48V |
| Bulk | 14.7 V | 29.4 V | 44.1 V | 58.8 V |
| Absorption | 14.7 V | 29.4 V | 44.1 V | 58.8 V |
| Float | 13.6 V | 27.2 V | 40.8 V | 54.6 V |
| TC Factor: -4mV/°C/cell | ||||
| Temperature Range Specifications | ||
|---|---|---|
| Condition | Recommended | Maximum |
| Storage | -15°C to 50°C | -40°C to 71°C |
| Operation | -15°C to 40°C | -40°C to 71°C |
| Charge with TC | -15°C to 50°C | -40°C to 71°C |
| Charge without TC | 0°C to 40°C | -15°C to 50°C |
| Terminal Torque Specifications | |||
|---|---|---|---|
| Terminal Type | ft-lbs | in-lbs | Nm |
| AP | DT (AP) | M6 | M6M (stud) | TP07 (AP) | TP08 (AP) | 4.2 – 6.0 | 50-70 | 5.6 – 7.9 |
| FR45 | 6.0 – 7.5 | 70-90 | 7.9 – 10.1 |
| M8 | LT | 7.1 – 8.0 | 85-95 | 9.6 – 10.7 |
| DT (stud) | M10M (stud) | 9.2 – 10.4 | 110-125 | 12.2 – 14.0 |
